After spending several weeks with the GMKtec K12 NucBox featuring AMD’s Ryzen 7 H 255 processor, I can confidently say this mini PC has both impressed and frustrated me in equal measure.

What caught my attention initially was the unique combination of features – three M.2 slots, OCuLink connectivity, and that intriguing vapor chamber cooling system.

But is bigger always better when it comes to mini PCs?

The K12 represents a significant departure from GMKtec’s previous designs, and I’ve discovered both compelling advantages and notable compromises in this approach.

GMKtec K12 Specifications Overview

Before diving into my hands-on experience, let me break down what you’re getting with the K12.

TECHNICAL SPECS
GMKTEC K12 NUCBOX
Processor
AMD Ryzen 7 H 255 (8 cores, 16 threads, 4.9GHz boost)
Graphics
AMD Radeon 780M (12 GPU cores, 2600 MHz)
Memory
DDR5 SO-DIMM, up to 96GB, 5600 MT/s
Storage
3x M.2 2280 slots (1x PCIe4.0 ×4, 2x PCIe4.0 ×2)
Connectivity
WiFi 6E, Bluetooth 5.2, Dual 2.5G Ethernet
Video Outputs
HDMI 2.1, DisplayPort 1.4, 2x USB-C with DP
Special Features
OCuLink, USB4 40Gbps, Vapor chamber cooling
Power
120W external adapter, 35-65W TDP modes
Deals
$409.99 barebone, $609.99 with 32GB RAM + 1TB SSD

K12 Key Advantages

Triple Storage
M.2 NVMe Slots
Maximum Capacity 24TB
• 3 × M.2 2280 slots
• 1x PCIe 4.0 x4, 2x PCIe 4.0 x2
• Unmatched expandability
OCuLink eGPU
Rear Port Placement
Performance Advantage +65%
• OCuLink vs USB4 advantage
• 91% GPU utilization achieved
• Clean cable management
Vapor Chamber
Advanced Cooling
Max CPU Temp 95°C
• Vapor chamber technology
• Sustained performance
• Better than heat pipes
Comprehensive I/O
Complete Connectivity
Total Ports 12+
• USB4, OCuLink, HDMI 2.1
• Quad-display support
• Professional connectivity
Amazon logo Check K12 Current Deals
Automatically redirects to your local Amazon store
As an Amazon Associate I earn from qualifying purchases. Your support helps our blog at no extra cost to you.
GMKtec K12 specifications table | Visualization created by hostbor Complete technical specifications overview of the K12 mini PC with triple M.2 and OCuLink support.

The specifications tell only part of the story – real-world performance and user experience matter far more.

Understanding the AMD Ryzen 7 H 255: A Complex Story

The AMD Ryzen 7 H 255 deserves special attention because it’s not exactly what it appears to be.

According to community research and my own investigation, this processor is essentially a rebranded AMD 8745HS designed specifically for the Chinese market.

The AMD Ryzen 7 H 255 represents what some enthusiasts call a “defective” or lower-quality 8845HS die that couldn’t meet full specifications.

Key limitations include a disabled NPU (Neural Processing Unit), CPU boost clocks reduced from 5.1GHz to 4.9GHz, and integrated GPU speeds lowered from 2700MHz to 2600MHz.

This means the K12’s processor is technically a step backward from the K8 Plus’s 8845HS, despite being marketed as newer.

However, real-world performance differences prove minimal for most applications, as my testing confirmed.

First Impressions: A Departure From GMKtec’s Usual Design

The K12 immediately stands out from GMKtec’s previous generation with its completely redesigned chassis.

GMKtec has abandoned their traditional all-plastic construction in favor of a hybrid design with metal accents.

What I appreciate most is the metal wrap around the plastic case, giving it a more premium feel than typical budget mini PCs.

The design takes clear inspiration from their EvoX1 series, creating a distinctive “PC sandwich” aesthetic that stands out on any desk.

The rubber feet on the side are a thoughtful touch that eliminates the need for separate vertical stands.

I can prop it up vertically without needing additional accessories, which is exactly how I prefer to position my mini PCs for better airflow.

💡
The K12 measures significantly larger than competing AMD Ryzen 7 H 255 systems at 1.58 liters, compared to the Beelink SER9’s 0.82 liters

There’s an RGB fan inside that’s barely visible through the case, which I actually appreciate since excessive lighting can be distracting.

You can cycle through different lighting modes with the dedicated fan button, though I honestly forgot about this feature after the first week of testing.

The size increase becomes apparent when comparing it to other AMD Ryzen 7 H 255 systems – this is definitely not a “micro” mini PC anymore.

What’s In The Box

GMKtec includes everything you need to get started: a compact 120-watt power supply, HDMI cable, and VESA mount.

I particularly appreciate the compact power supply design – it’s much more manageable than the bulky adapters some competitors include.

The 19V 120W adapter represents a significant improvement over older GMKtec models that shipped with larger, less convenient power bricks.

The VESA mounting hardware feels solid and includes all necessary screws for standard monitor mounting scenarios.

Connectivity: Where The K12 Really Shines

The port selection on the K12 is genuinely impressive for a mini PC in this price range.

GMKtec has clearly listened to user feedback about I/O requirements and delivered a comprehensive solution.

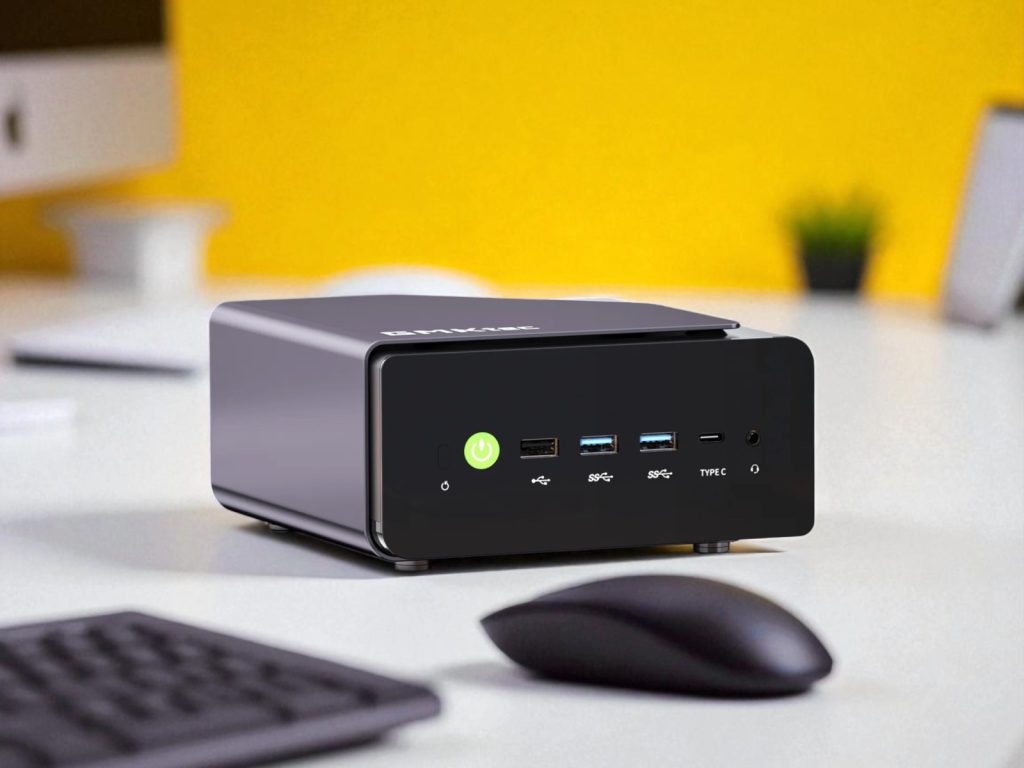

Front Panel Ports

The front panel houses all the essentials you’ll access regularly.

The power button features an integrated LED that provides clear system status indication.

A CMOS reset button sits conveniently accessible for troubleshooting situations.

One USB 2.0 port handles low-bandwidth peripherals like wireless dongles perfectly.

Two USB 3.2 Gen2 Type-A ports provide fast data transfer for external storage and high-bandwidth devices.

The fully-featured USB Type-C port supports 10Gbps data transfer, power delivery, and display output simultaneously.

This USB-C port enables a clean one-cable solution with compatible monitors – something I tested extensively with my Samsung ultrawide display.

The 3.5mm headphone/microphone combo jack rounds out the front panel with essential audio connectivity.

Rear Panel: The Crown Jewel

GMKtec K12 MiniPC. A sleek external GPU enclosure with multiple ports including HDMI, USB, and Ethernet connections

The rear panel is where GMKtec has truly outdone themselves with connectivity options.

The HDMI 2.1 port supports up to 4K 120Hz output, perfect for modern gaming displays.

DisplayPort 1.4 pushes capabilities even further, supporting up to 8K 120Hz for professional applications.

The USB4 40Gbps port provides Thunderbolt-equivalent performance for high-end peripherals and external storage.

An additional USB 3.2 Gen2 port ensures you never run out of high-speed connections.

One USB 2.0 port handles legacy devices and low-bandwidth peripherals efficiently.

Dual Realtek 2.5 gigabit LAN ports provide redundancy and advanced networking capabilities.

The OCuLink port represents the system’s most unique feature, positioned strategically on the rear panel.

✔️
The OCuLink port’s rear placement is a game-changer for cable management compared to front-mounted implementations on the K8 Plus

I’ve been using this setup for weeks now, and having the OCuLink on the back makes for such a cleaner desktop arrangement.

A second 3.5mm audio jack on the rear accommodates surround sound systems and professional audio setups.

The fan/LED control button allows quick adjustments without accessing BIOS settings.

Performance Analysis: How The AMD Ryzen 7 H 255 Stacks Up

Now let’s talk about what really matters – performance under real-world conditions.

According to Robtech’s comprehensive testing, the AMD Ryzen 7 H 255 delivers competitive results despite its technical limitations.

My own testing confirms these findings while revealing some interesting performance characteristics.

CPU Benchmarks

Cinebench R23 single-core testing revealed the K12’s solid foundation for single-threaded applications.

In default mode, the system achieved 1727 points, placing it competitively among similar systems.

Performance mode boosted results to 1766 points, representing a modest but meaningful improvement.

The difference between default and performance modes remains minimal for single-threaded workloads, as expected.

CINEBENCH R23
Mini PC Performance Comparison
GMKtec K12 NucBox H 255 (Performance) AMD Ryzen H 255
16383
1766
Beelink SER9 H 255 (Performance) AMD Ryzen H 255
15997
1753
GMKtec K10 i9-13900HK (Performance) Intel Core i9-13900HK
15466
1720
Minisforum UM790 Pro 7940HS (Performance) AMD Ryzen 9 7940HS
17243
1854
Multicore Score (Standard)
Single Core Score (Standard)
GMKtec K12 (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Cinebench R23.

Multi-core performance proved more impressive, showcasing the AMD Ryzen 7 H 255’s eight-core advantage.

Default mode delivered 16018 points, demonstrating excellent multi-threading capabilities.

Performance mode pushed results to 16383 points, showing better scaling for demanding applications.

These scores place the K12 ahead of the comparable Beelink SER9 with the same AMD Ryzen 7 H 255 processor.

The performance advantage likely stems from the K12’s superior cooling system allowing sustained boost clocks.

Geekbench 6 results confirmed the Cinebench findings across different testing methodologies.

Single-core performance reached 2593 points in default mode and 2599 points in performance mode.

Multi-core scores of 12533 points (default) and 12768 points (performance) demonstrate consistent multi-threading strength.

The K12 consistently outperformed the Beelink SER9 in both single and multi-core tests, validating the cooling system improvements.

GEEKBENCH 6
Mini PC Performance Comparison
GMKtec K12 NucBox H 255 (Performance) AMD Ryzen H 255
12768
2599
Beelink SER9 H 255 (Performance) AMD Ryzen H 255
12491
2593
GMKtec NucBox K11 8945HS (Performance) AMD Ryzen 9 8945HS
13321
2667
GMKtec K10 i9-13900HK (Performance) Intel Core i9-13900HK
13000
2405
Minisforum UM790 Pro 7940HS (Performance) AMD Ryzen 9 7940HS
13829
2658
Multicore Score (Standard)
Single Core Score (Standard)
GMKtec K12 (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Geekbench 6.

What impressed me most is how consistently the K12 maintained these performance levels throughout extended testing sessions.

The vapor chamber cooling system clearly makes a difference in sustained workloads compared to traditional heat pipe solutions.

Video Encoding Performance

For content creators, video encoding performance represents a critical workflow requirement.

H.264 CPU encoding using HandBrake completed in 100 seconds during default mode testing.

Performance mode shaved just one second off this time, completing in 99 seconds.

This minimal difference demonstrates that performance mode provides limited benefits for well-optimized encoding workloads.

The K12 outperformed the Beelink SER9 by 4 seconds in default mode, again highlighting the cooling advantage.

AV1 software encoding proved more demanding, requiring 592 seconds in default mode.

Performance mode delivered more noticeable improvements here, completing the same task in 574 seconds.

The 18-second improvement represents a meaningful benefit for creators working with AV1 content regularly.

Hardware AV1 encoding via AMD’s VCE proved significantly faster at 86 seconds in default mode.

Performance mode squeezed out a 2-second improvement, completing in 84 seconds.

These results showcase the value of hardware acceleration for modern video formats.

The K12 led the comparison group in hardware AV1 encoding, demonstrating optimized driver and firmware integration.

VIDEO ENCODING RENDER TIME
Mini PC Performance Comparison
Handbrake H264 Software (Render Time in Seconds) GMKtec K12 NucBox H 255 (Performance)
99
Beelink SER9 H 255 (Performance)
103
GMKtec K10 i9-13900HK (Performance)
105
Minisforum UM790 Pro 7940HS (Performance)
95
GMKtec K12 (Performance)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Handbrake H264 Software encoding.

Graphics Performance: The AMD Radeon 780M Experience

The integrated AMD Radeon 780M graphics proved capable for both productivity and gaming workloads.

However, the reduced GPU clocks of the AMD Ryzen 7 H 255 compared to full-specification processors do impact performance.

3DMark Fire Strike delivered 8248 points in default mode, representing solid integrated graphics performance.

Performance mode boosted results to 8445 points, showing meaningful scaling with increased power limits.

The Beelink SER9 with identical AMD Ryzen 7 H 255 processor scored higher at 8581 points, suggesting memory configuration differences.

This performance gap likely stems from memory speed advantages in the SER9’s configuration.

3DMARK FIRE STRIKE DX11
Mini PC Performance Comparison
GMKtec K12 NucBox H 255 (Performance) AMD Ryzen H 255
8445
Beelink SER9 H 255 (Performance)
8610
GMKtec NucBox K11 8945HS (Performance)
8760
GMKtec K10 i9-13900HK (Performance)
15466
Minisforum UM790 Pro 7940HS (Performance)
9420
GenMachine L6000 Pro 6800H (Performance)
7794
GMKtec K12 (Performance)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in 3DMark Fire Strike DX11. Source: benchmark-data.json

3DMark Time Spy results followed similar patterns with 2915 points (default) and 2992 points (performance).

The competing SER9 again edged ahead with 3008 points in default mode, maintaining its slight advantage.

Steel Nomad Light testing produced 2721 points (default) and 2794 points (performance) for the K12.

The SER9’s 2826-point result in default mode continued the trend of small but consistent performance differences.

These results place the AMD Radeon 780M in capable territory for 1080p gaming at medium settings in most titles.

The performance differences between systems with identical processors highlight how memory configuration and cooling affect integrated graphics.

Geekbench AI testing revealed interesting patterns in artificial intelligence workloads.

CPU AI performance reached 7185 points in quantized mode, 4120 points in single precision, and 1834 points in half precision.

GPU AI results showed 10429 points (quantized), 6870 points (single precision), and 5338 points (half precision).

The SER9 outperformed the K12 in GPU AI testing, reinforcing the memory speed hypothesis for integrated graphics performance.

Gaming Performance: Real-World Testing

I spent considerable time testing various games to understand the K12’s real-world gaming capabilities.

The AMD Radeon 780M graphics handle different game genres with varying degrees of success.

Competitive Gaming Excellence

Counter-Strike 2 at 1080p medium settings delivered impressive 94 FPS average performance.

The 1% low performance of 63 FPS ensures smooth gameplay even during intense firefights.

These frame rates make the K12 perfectly suitable for competitive gaming on high-refresh displays.

Valorant performed even better, achieving an outstanding 216 FPS average at 1080p medium settings.

The 114 FPS 1% lows guarantee consistent performance for competitive advantage.

This level of performance rivals dedicated gaming laptops from just a few years ago.

Dota 2 managed 89 FPS average with 51 FPS 1% lows at 1080p medium, providing excellent MOBA gaming experience.

GAMING PERFORMANCE
Mini PC Performance Comparison
Counter-Strike 2 (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
94
Beelink SER9 H 255 (Performance)
68
Dota 2 (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
89
Beelink SER9 H 255 (Performance)
71
COD Warzone (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
61
Beelink SER9 H 255 (Performance)
39
Gears of War Reloaded (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
83
Beelink SER9 H 255 (Performance)
52
Metal Gear Solid Δ: Snake Eater (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
31
Beelink SER9 H 255 (Performance)
20
Cyberpunk 2077 (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
42
Beelink SER9 H 255 (Performance)
31
Breath of the Wild (CEMU) (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
50
Beelink SER9 H 255 (Performance)
35
Motorstorm Pacific Rift (RCPS3) (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
35
Beelink SER9 H 255 (Performance)
31
Valorant (Avg FPS) GMKtec K12 NucBox H 255 (Performance)
216
GMKtec K12 (Performance)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Gaming Benchmarks.

AAA Gaming Challenges

Modern AAA titles require more careful settings management to achieve playable performance.

Cyberpunk 2077 with FSR Balanced upscaling at 1080p medium delivered 42 FPS average.

However, the concerning 7 FPS 1% lows indicate occasional severe stuttering during gameplay.

This performance profile suggests Cyberpunk 2077 pushes the AMD Radeon 780M beyond its comfort zone.

Call of Duty: Warzone managed better frame pacing with 61 FPS average at 1080p basic settings.

The more consistent 45 FPS 1% lows make Warzone significantly more playable than Cyberpunk 2077.

Metal Gear Solid Δ: Snake Eater with FSR Balanced achieved 31 FPS average with 23 FPS lows.

While technically playable, this represents the lower limit of acceptable gaming performance.

💪
For AAA gaming, expect to use FSR upscaling and medium or lower settings at 1080p for smooth gameplay

Emulation Performance

Retro gaming through emulation showcases the AMD Radeon 780M’s versatility.

The Legend of Zelda: Breath of the Wild via CEMU emulator achieved 50 FPS average at 1080p.

Consistent 47 FPS 1% lows ensure smooth exploration of Hyrule without significant frame drops.

MotorStorm: Pacific Rift through RPCS3 PlayStation 3 emulation managed 35 FPS average with 30 FPS lows.

These results demonstrate capable emulation performance for systems up through seventh-generation consoles.

The OCuLink Advantage: External GPU Performance

The OCuLink port transforms the K12’s gaming capabilities from adequate to exceptional.

This represents the system’s most compelling feature for users seeking desktop-class gaming performance.

Testing with an RTX 4070 Super eGPU revealed dramatic performance differences between connection methods.

USB4 connection achieved 57 FPS average with disappointing 57% GPU utilization, indicating significant bandwidth limitations.

OCuLink delivered 94 FPS with impressive 91% GPU utilization – a massive 65% performance increase over USB4.

The 1% low performance improved from 36 FPS (USB4) to 73 FPS (OCuLink), demonstrating superior frame pacing.

eGPU PERFORMANCE COMPARISON
RTX 4070 Super Connection Types
OCuLink Connection RTX 4070 Super
94
USB4 Connection
57
GMKtec K12 (Performance)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor eGPU Performance Comparison (RTX 4070 Super).
✔️
OCuLink provides nearly full desktop GPU performance, making this a viable high-end gaming solution

What impressed me most was how the eGPU setup actually reduced overall system noise levels.

With the dedicated GPU handling graphics processing, the AMD Ryzen 7 H 255 CPU doesn’t work as hard during gaming sessions.

This results in lower CPU temperatures and reduced fan speeds compared to integrated graphics gaming.

The rear OCuLink placement proves its worth here, enabling clean cable routing behind the system.

Tech With Beau’s testing confirmed these findings while demonstrating even higher-end GPU compatibility.

Desktop GPU connections via OCuLink adapters unlock truly high-end gaming performance when needed.

Storage and Expandability: Triple M.2 Advantage

The K12’s three M.2 2280 Gen 4 slots represent a significant advantage over most mini PCs in this price range.

Most competing systems force users to choose between dual storage or other expansion options.

The primary slot provides full PCIe 4.0 x4 performance for high-speed OS drives.

Two additional PCIe 4.0 x2 slots still deliver 32Gbps (4GB/s) bandwidth – more than adequate for most storage applications.

My test unit included a 1TB Crucial P3 Plus drive, which performed admirably across various workloads.

3DMark storage testing produced a respectable 2953 points, placing it well within the competitive range.

The SSD maintained reasonable temperatures under sustained load testing conditions.

Drive temperature reached 55°C (131°F) while the controller peaked at 59°C (138°F) during stress testing.

Effective cooling from the internal fan prevented thermal throttling throughout extended testing sessions.

STORAGE BENCHMARK
SSD Performance Comparison
GMKtec K10 1TB Crucial (Gen4) SSD Benchmark Score
3496
Reatan Silver 9 1TB Crucial (Gen4)
3485
GMKtec NucBox K11 1TB Crucial (Gen4)
3154
GMKtec K12 NucBox 1TB Crucial (Gen4) SSD Benchmark Score
2953
MSI CUBI NUC AI 1TUMG 1TB WD (Gen4)
2888
Beelink SER9 1TB Crucial (Gen4)
1942
GMKtec K12 (Performance)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor SSD Performance Comparison.

Having three slots enables flexible storage configurations for different use cases.

Content creators can run a fast OS drive on the x4 slot while using x2 slots for project storage and cache drives.

Professionals might configure RAID arrays for redundancy while maintaining high performance.

Home users can separate system, applications, and data across different drives for organization.

Easy Internal Access

Disassembly proved remarkably straightforward compared to many compact systems.

The screws that serve as feet provide the first level of access once removed.

Sliding off the metal sandwich reveals the dual-fan cooling system immediately.

Four additional screws on the sides allow complete removal of the top plastic enclosure.

All three M.2 slots become accessible without removing any additional components.

The WiFi card sits beneath one of the SSD slots but remains easy to service if needed.

I appreciate how GMKtec designed this system for user serviceability – a luxury that shouldn’t be taken for granted.

Memory slots provide easy access for RAM upgrades up to the 96GB maximum capacity.

The CMOS battery location is clearly visible and accessible for future maintenance needs.

Thermal Performance and Power Consumption

The K12’s vapor chamber cooling system represents a meaningful upgrade from traditional heat pipe solutions found in the K8 Plus.

Tech With Beau‘s detailed teardown revealed an impressive cooling implementation with copper vapor chamber technology.

During extended Cinebench testing, the system maintained steady 65-watt power consumption.

Peak power draw reached 70 watts briefly before settling into sustained operation at 65 watts.

CPU temperatures peaked around 94°C (201°F) in default mode during sustained workloads.

MAXIMUM CPU TEMPERATURE
Mini PC Performance Comparison
Beelink SER9 H 255 (Default) CPU Temperature (°C)
89
Beelink SER9 H 255 (Performance)
90
Minisforum UM790 Pro 7940HS (Default) CPU Temperature (°C)
89
Minisforum UM790 Pro 7940HS (Performance)
90
GMKtec K10 i9-13900HK (Default) CPU Temperature (°C)
93
GMKtec K10 i9-13900HK (Performance)
94
GMKtec K12 NucBox H 255 (Default) CPU Temperature (°C)
94
GMKtec K12 NucBox H 255 (Performance)
95
GMKtec K12 (Performance)
Other Devices (Default)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in CPU Temperature.

Performance mode pushed temperatures slightly higher to 95°C (203°F) but remained within acceptable ranges.

These temperatures fall within AMD’s specifications for the AMD Ryzen 7 H 255 processor.

The vapor chamber prevents thermal throttling even during extended stress testing sessions.

💡
Idle power consumption measures 11 watts, while maximum draw reaches 90-105 watts depending on performance mode

However, the cooling performance comes at the cost of increased noise levels compared to competing systems.

Idle fan noise measures 33 dBA, which is audible in quiet environments unlike some competitors.

Default mode load operation reaches 40 dBA, remaining reasonable for most users.

Performance mode pushes noise levels to 46 dBA – noticeably louder and potentially distracting.

The Beelink SER9 with identical AMD Ryzen 7 H 255 processor operates nearly silently at idle and remains quieter under load.

NOISE LEVELS
Mini PC Performance Comparison
Beelink SER9 H 255 (Idle) Noise Level (dBA)
29
Beelink SER9 H 255 (Load Default)
36
Beelink SER9 H 255 (Load Performance)
39
Minisforum UM790 Pro 7940HS (Idle) Noise Level (dBA)
29
Minisforum UM790 Pro 7940HS (Load Default)
36
Minisforum UM790 Pro 7940HS (Load Performance)
39
Minisforum UM760 7640HS (Idle) Noise Level (dBA)
29
Minisforum UM760 7640HS (Load Default)
36
Minisforum UM760 7640HS (Load Performance)
39
GMKtec K10 i9-13900HK (Idle) Noise Level (dBA)
30
GMKtec K10 i9-13900HK (Load Default)
40
GMKtec K10 i9-13900HK (Load Performance)
43
GMKtec K12 NucBox H 255 (Idle) Noise Level (dBA)
33
GMKtec K12 NucBox H 255 (Load Default)
40
GMKtec K12 NucBox H 255 (Load Performance)
46
GMKtec K12 (Performance)
Other Devices (Default)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Noise Levels.

Productivity Performance

For creative professionals and productivity users, the K12 delivered impressive results across demanding applications.

Adobe Photoshop performance reached 8107 points in default mode using PugetBench testing methodology.

ADOBE PHOTOSHOP BENCHMARK
Mini PC Performance Comparison (Higher Score is Better)
GMKtec K12 NucBox H 255 (Default) PugetBench Score
8107
GMKtec K12 NucBox H 255 (Performance)
8160
Beelink SER9 H 255 (Default) PugetBench Score
7887
Beelink SER9 H 255 (Performance)
7970
GMKtec NucBox K11 8945HS (Default) PugetBench Score
8698
GMKtec NucBox K11 8945HS (Performance)
8760
GMKtec K10 i9-13900HK (Default) PugetBench Score
12416
GMKtec K10 i9-13900HK (Performance)
13000
Minisforum UM790 Pro 7940HS (Default) PugetBench Score
16598
Minisforum UM790 Pro 7940HS (Performance)
17243
GEEKOM IT15 Ultra 9 285H (Default) PugetBench Score
7895
GEEKOM IT15 Ultra 9 285H (Performance)
8095
ACEMAGIC W1 8745HS (Default) PugetBench Score
8043
ACEMAGIC W1 8745HS (Performance)
8095
BOSGAME M4 Neo 7840HS (Default) PugetBench Score
3093
BOSGAME M4 Neo 7840HS (Performance)
3577
GMKtec K12 (Performance)
Other Devices (Default)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Adobe Photoshop Benchmark.

Performance mode boosted results to 8160 points, actually achieving first place among tested systems.

This level of performance makes the K12 suitable for serious photo editing and digital art workflows.

Adobe Premiere Pro achieved 3545 points in default mode, demonstrating capable video editing performance.

Performance mode improved results to 3642 points, providing meaningful benefits for video professionals.

These scores compete favorably with dedicated workstation systems costing significantly more.

ADOBE PREMIERE PRO BENCHMARK
Mini PC Performance Comparison
GMKtec K12 NucBox H 255 (Default) PugetBench Score
3545
GMKtec K12 NucBox H 255 (Performance)
3642
Beelink SER9 H 255 (Default) PugetBench Score
3421
Beelink SER9 H 255 (Performance)
3665
GEEKOM IT15 Ultra 9 285H (Default) PugetBench Score
3291
GEEKOM IT15 Ultra 9 285H (Performance)
3771
ACEMAGIC W1 8745HS (Default) PugetBench Score
8043
ACEMAGIC W1 8745HS (Performance)
8095
BOSGAME M4 Neo 7840HS (Default) PugetBench Score
3093
BOSGAME M4 Neo 7840HS (Performance)
3577
GMKtec K12 (Performance)
Other Devices (Default)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Adobe Premiere Pro Benchmark.

Code compilation testing revealed exceptional performance for developer workflows.

Linux kernel compilation completed in 114.637 seconds using default mode settings.

Performance mode reduced compilation time to 111.769 seconds, saving nearly 3 seconds.

The K12 actually took the top spot among tested systems in balanced mode compilation performance.

This makes it an excellent choice for software development and DevOps workflows.

CODE COMPILATION BENCHMARK
Linux Kernel Compile Time
Chuwi AuBox i9-13900HK (Performance) Compile Time (Seconds, Lower is Better)
102.571
GMKtec K12 NucBox H 255 (Performance)
111.769
GMKtec K12 NucBox H 255 (Default)
114.637
Beelink SER9 H 255 (Default) Compile Time (Seconds, Lower is Better)
118.867
Beelink SER9 H 255 (Performance)
116.299
GenMachine L6000 Pro 6800H (Default) Compile Time (Seconds, Lower is Better)
165.459
GenMachine L6000 Pro 6800H (Performance)
163.264
Minisforum UM750L 7545U (Default) Compile Time (Seconds, Lower is Better)
167.029
Minisforum UM750L 7545U (Performance)
167.029
GMKtec K12 (Performance)
Other Devices (Default)
Other Devices (Performance)
Data source: Robtech | Visualization created by hostbor Mini PC performance comparison in Code Compilation Benchmark.

Connectivity and Wireless Performance

The K12 includes a MediaTek RZ616 WiFi 6E card, addressing connectivity issues that plagued previous GMKtec models.

WiFi 6E support enables access to the less congested 6GHz band for improved performance.

Theoretical maximum speeds reach 2.4 Gbps under ideal conditions with compatible routers.

I tested WiFi performance at 12 meters (39 feet) from my router using the 5GHz band.

Throughout an entire Valorant gaming session, I experienced no connection problems or performance degradation.

This represents a significant improvement over earlier GMKtec units that struggled with wireless connectivity.

However, Bluetooth range proved disappointing at just 3.7 meters (12.1 feet) in testing.

This limited range could be problematic for wireless keyboard and mouse setups in larger rooms.

The dual 2.5 gigabit Ethernet ports use Realtek 8125BG controllers rather than Intel alternatives.

While Realtek networking generally performs adequately, some users prefer Intel controllers for compatibility and driver support.

Both Ethernet ports support link aggregation for increased bandwidth when connected to compatible switches.

Comparing K12 vs K8 Plus: Evolution or Regression?

The relationship between the K12 and K8 Plus represents a complex trade-off rather than straightforward improvement.

Reddit users have extensively discussed these differences, revealing important considerations for potential buyers.

The K8 Plus features the full-specification 8845HS processor with 5.1GHz boost clocks and 2700MHz GPU speeds.

The K12’s AMD Ryzen 7 H 255 represents a step backward with 4.9GHz CPU clocks and 2600MHz GPU speeds.

However, the K12 offers superior I/O with three M.2 slots versus the K8 Plus’s two slots.

The rear OCuLink placement on the K12 improves cable management compared to the K8 Plus’s front-mounted port.

Vapor chamber cooling in the K12 surpasses the K8 Plus’s traditional heat pipe system.

Build quality improvements include the metal accent design versus the K8 Plus’s all-plastic construction.

The K8 Plus maintains dual USB4 ports while the K12 offers just one USB4 connection.

Size represents a significant difference – the K12’s 1.58-liter volume dwarfs the K8 Plus’s more compact design.

Real-world performance differences prove minimal for most applications despite the specification differences.

User experiences suggest both systems perform similarly in daily usage scenarios.

Linux Compatibility and Software Support

Linux compatibility represents an important consideration for many mini PC buyers.

According to Robtech’s testing, Ubuntu installation proceeded without issues on the K12.

All hardware components functioned properly without requiring custom drivers or configuration changes.

Reddit user reports confirm excellent Linux compatibility across multiple distributions.

One user successfully installed Ubuntu and reported smooth operation without hardware issues.

Proxmox virtualization environment works well on the K12 for homelab applications.

GPU passthrough functionality enables Windows virtual machines with hardware acceleration.

The AMD Ryzen 7 H 255’s standard architecture ensures good software compatibility despite its Chinese market origins.

Windows 11 Pro comes pre-installed and passes Malwarebytes security scans according to testing.

Pros and Cons: My Final Assessment

What I Like About The K12

  • Three M.2 storage slots provide unmatched expandability in this price range
  • OCuLink port placement on the rear dramatically improves cable management
  • Vapor chamber cooling represents a meaningful upgrade over traditional heat pipes
  • Comprehensive I/O selection covers virtually every connectivity need
  • Easy disassembly enables straightforward upgrades and maintenance
  • Compact 120W power supply improves desk space utilization
  • Solid build quality with attractive metal accent design
  • Competitive pricing at $409.99 for the feature set provided
  • Excellent Linux compatibility across multiple distributions
  • Strong productivity performance for creative and professional workflows

Areas for Improvement

  • Significantly larger footprint than competing AMD Ryzen 7 H 255 systems
  • Higher idle fan noise at 33 dBA compared to silent competitors
  • Load fan noise reaches concerning 46 dBA in performance mode
  • Limited Bluetooth range may affect wireless peripheral usage
  • Realtek ethernet controllers instead of preferred Intel alternatives
  • AMD Ryzen 7 H 255 processor represents a technical step backward from 8845HS
  • Single USB4 port versus dual ports on the K8 Plus
  • Only one M.2 slot provides full PCIe 4.0 x4 performance
The K12’s size and noise levels make it less suitable for quiet desktop environments compared to alternatives like the Beelink SER9

Who Should Buy The GMKtec K12

BUYER PROFILE
WHO SHOULD CHOOSE THE K12

Finding Your Mini PC Match

Choosing the right mini PC depends on your specific workflow needs, space constraints, and expansion requirements. This guide helps determine whether the GMKtec K12’s unique features align with your computing demands based on extensive testing and user feedback.

Content Creators & Power Users

Storage Expansion Future-Proof

Creative professionals who require maximum storage expandability, developers working with large datasets, and users who prioritize upgrade paths and comprehensive I/O connectivity for complex workflows.

Triple M.2 slots (up to 24TB capacity)
Comprehensive connectivity for professional setups
Easy serviceability for future upgrades
Perfect for Storage-Intensive Work
Amazon K12 Current Deals

Gaming Enthusiasts & eGPU Users

OCuLink Gaming Cable Management

Gamers planning external GPU setups who value clean cable management, users wanting desktop-class gaming performance in a compact form factor, and enthusiasts who appreciate the rear OCuLink placement.

65% better GPU performance vs USB4
Rear OCuLink for cleaner desktop setup
Quieter operation with dedicated GPU
Ideal for eGPU Setups
Amazon K12 Gaming Setup

Consider Alternatives If

Compact Priority Silent Operation

Users with limited desktop space, those prioritizing silent operation, single-drive users who don’t need multiple M.2 slots, or performance enthusiasts seeking maximum CPU and GPU clock speeds.

Beelink SER9 for compact & quiet alternative
K8 Plus for higher CPU/GPU clocks
Skip if Bluetooth range is critical
Explore Compact Alternatives

Upgrade Decision Guide

Feature Value Use Case Match

Understanding which unique K12 features you’ll actually utilize helps determine if the larger size and higher noise levels are worthwhile trade-offs for your specific workflow needs.

Value Assessment:
  • Need 3+ drives: K12 is unmatched in this price range
  • Planning eGPU: Rear OCuLink justifies the larger size
  • Single drive user: Compact alternatives offer better value
  • Quiet priority: SER9 delivers identical performance silently
Match Features to Your Needs
Final Assessment:
The K12 succeeds as a specialized tool rather than a universal mini PC solution. If your workflow demands maximum storage expandability, clean external GPU integration, or comprehensive connectivity, the K12 delivers compelling value at $409.99 barebone. However, users prioritizing compact size, silent operation, or single-drive simplicity will find better daily usability in smaller, quieter alternatives without sacrificing performance.
Clicking the Amazon links redirects you to your local Amazon store.
As an Amazon Associate I earn from qualifying purchases. Your support helps our blog at no extra cost to you.
GMKtec K12 Mini PC buyer profile assessment | Visualization created by hostbor Matching user needs with the K12’s unique features and trade-offs based on extensive testing.

After extensive testing and analysis, I can recommend the K12 for specific use cases and user types.

Ideal Candidates

Content creators who require maximum storage expandability will appreciate the three M.2 slots.

Users planning external GPU setups via OCuLink benefit from the superior rear port placement.

Professionals who need comprehensive I/O connectivity for complex workflows find value in the port selection.

Developers and power users who prioritize upgrade paths and future-proofing will appreciate the expandability.

Home lab enthusiasts running virtualization or server applications can utilize the storage and performance capabilities.

Budget-conscious users seeking premium features at competitive prices find good value proposition here.

Who Should Look Elsewhere

Users with limited desktop space should consider more compact alternatives like the Beelink SER9.

Quiet operation prioritizers will be bothered by the K12’s audible fan noise even at idle.

Single-drive users who don’t need multiple M.2 slots might find better value elsewhere.

Performance enthusiasts seeking maximum CPU and GPU clocks should consider the K8 Plus instead.

Users who don’t plan to utilize OCuLink connectivity lose a key differentiating feature.

Bluetooth-dependent setups may be limited by the restricted wireless range.

Frequently Asked Questions

Is the AMD Ryzen 7 H 255 processor good for gaming?

The AMD Ryzen 7 H 255 with Radeon 780M graphics handles competitive games excellently at 1080p, but AAA titles require medium or low settings with upscaling for smooth performance.

How many storage drives can the K12 support?

The K12 features three M.2 2280 slots: one PCIe 4.0 x4 slot and two PCIe 4.0 x2 slots, supporting up to 24TB total storage capacity theoretically.

What’s the difference between OCuLink and USB4 for external GPUs?

Testing revealed OCuLink provides 65% better GPU performance than USB4, achieving 91% GPU utilization versus 57% with USB4 connections in identical setups.

Can the K12 support 4K gaming?

The integrated Radeon 780M graphics cannot handle 4K gaming effectively, but with an OCuLink external GPU like the RTX 4070 Super, 4K gaming becomes feasible with appropriate settings.

How loud is the K12 during normal use?

Idle noise measures 33 dBA, which is audible in quiet environments, while load operation reaches 40-46 dBA depending on performance mode selection.

Is the K12 suitable for video editing?

Yes, the K12 handles video editing well with Adobe Premiere Pro scores of 3545-3642 points, and hardware AV1 encoding completes in just 84-86 seconds.

What power modes does the K12 offer?

The system supports 35W, 54W, and 65W TDP modes through BIOS configuration, with performance mode providing minimal real-world benefits for most applications.

Can I upgrade the RAM and storage?

Yes, the K12 supports up to 96GB DDR5 SO-DIMM memory and features three easily accessible M.2 slots for storage expansion without tools.

How does the K12 compare to the K8 Plus?

The K12 offers improved cooling, rear OCuLink placement, and three M.2 slots, but the K8 Plus has slightly faster CPU and GPU clocks due to its full-specification 8845HS processor.

What comes included with the K12?

The package includes the mini PC, compact 120W power supply with multiple regional adapters, HDMI cable, and VESA mounting hardware for monitor attachment.

Is Linux compatibility good with the K12?

Yes, users report excellent Linux compatibility with Ubuntu, Fedora, and other distributions, with all hardware components functioning properly without custom drivers or configuration.

What display outputs does the K12 support?

The system supports quad-display output through HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (8K 120Hz), USB4 Type-C, and front USB-C ports simultaneously.

Should I buy the barebone or configured version?

The barebone version at $409.99 offers better value if you can source DDR5 RAM and NVMe storage yourself, potentially saving $100-200 compared to preconfigured options.

What’s the warranty and support situation?

GMKtec provides a 1-year warranty with free worldwide shipping and 7-day returns, though support quality varies according to user experiences and geographic location.

How hot does the K12 get during heavy use?

CPU temperatures peak around 94-95°C (201-203°F) under sustained loads, while SSD temperatures reach 55°C (131°F) for the drive and 59°C (138°F) for the controller.

Final Verdict: A Capable But Compromised System

FINAL VERDICT
GMKTEC K12 ASSESSMENT & RECOMMENDATION
7.2 out of 10

Category Breakdown

Storage Expandability 9.5/10
I/O Connectivity 8.5/10
Performance 7.0/10
Size & Noise 5.5/10
Value Proposition 7.5/10

Standout Strengths

  • Unmatched triple M.2 storage expandability (up to 24TB)
  • Rear OCuLink placement for clean cable management
  • Vapor chamber cooling upgrades thermal performance
  • Comprehensive I/O selection covers professional needs
  • Easy disassembly enables straightforward upgrades
  • Competitive pricing at $409.99 barebone

Notable Compromises

  • Significantly larger footprint (1.58L vs 0.82L competitors)
  • Higher noise levels even at idle (33 dBA)
  • AMD Ryzen 7 H 255 represents technical step backward
  • Limited Bluetooth range (3.7m vs competitors’ 5-6m)
  • Single USB4 port versus dual ports on K8 Plus
  • Realtek ethernet instead of Intel controllers

Final Assessment

The GMKtec K12 succeeds as a specialized expansion-focused mini PC rather than a universal solution. For workflows demanding maximum storage capacity, clean eGPU integration, or comprehensive connectivity, it delivers compelling value despite size and noise trade-offs.

If your workflow can utilize its distinctive advantages – triple M.2 slots and rear OCuLink – the K12 justifies its larger footprint. Otherwise, smaller alternatives provide better daily usability without performance sacrifices.

Amazon Logo Check K12 Current Deals
Automatically redirects to your local Amazon store
As an Amazon Associate I earn from qualifying purchases. Your support helps our blog at no extra cost to you.

Perfect Match For:

Content Creators
Requiring massive storage capacity and professional I/O connectivity
eGPU Enthusiasts
Wanting clean desktop setups with rear OCuLink placement
Future-Proof Builders
Prioritizing upgrade paths and long-term expandability
GMKtec K12 Mini PC Final Assessment | Visualization created by hostbor Comprehensive evaluation based on extensive testing and comparison against competing AMD Ryzen 7 H 255 systems

The GMKtec K12 represents both meaningful evolution and frustrating regression in the mini PC space.

Its standout features – three M.2 slots, rear OCuLink placement, and vapor chamber cooling – genuinely improve the user experience for specific workflows.

The comprehensive I/O selection and build quality improvements demonstrate GMKtec’s response to user feedback and market demands.

However, the larger footprint and increased noise levels work against the fundamental appeal of mini PCs: being compact and unobtrusive.

The AMD Ryzen 7 H 255 processor choice represents a concerning trend toward lower-specification chips despite marketing suggestions otherwise.

I’d recommend the K12 if you specifically need its unique storage configuration or plan extensive external GPU usage.

Most users would be better served by smaller, quieter alternatives with identical processors like the Beelink SER9.

At $409.99 barebone, the K12 offers reasonable value for its feature set, but the proposition depends entirely on utilizing its distinctive advantages.

The K12 succeeds as a specialized tool rather than a universal mini PC solution – and there’s nothing inherently wrong with that approach.

If your workflow demands maximum storage expandability, clean external GPU integration, or comprehensive connectivity, the K12 delivers compelling value.

For everyone else, smaller and quieter alternatives provide better daily usability without sacrificing meaningful performance.

Categorized in:

Mini PCs, New Releases, Reviews,
